Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Configuration | Open Frame |
| Dimensions | 8.5" L x 4.5" W x 2" H |
| Frequency, Operating | 47 to 63 Hz (AC Input), 16 to 120 kHz |
| Input Current | 3.3 A (RMS)(90 VAC) |
| Input Voltage | 100 VAC ; 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC |
| Line Regulation | 0.2% |
| Load Regulation | 1% |
| Mounting Type | Panel Mount |
| Number of Outputs | 1 Output |
| Operating Temperature | 0 to 50 °C |
| Operation | Switching |
| Output Current | 10 A |
| Output Power | 135 W |
| Output Voltage | 13.5 VDC |
| Power Rating | 130 W |
| Primary Type | AC-DC |
| Product Header | MAP130 AC-DC Series Power Supply |
| Series | |
| Special Features | Remote Sense |
| Standards | UL Listed, CSA Certified |
| Type | Embedded |
| Voltage, Input Range | 90-132/175-264 VAC |
Overview

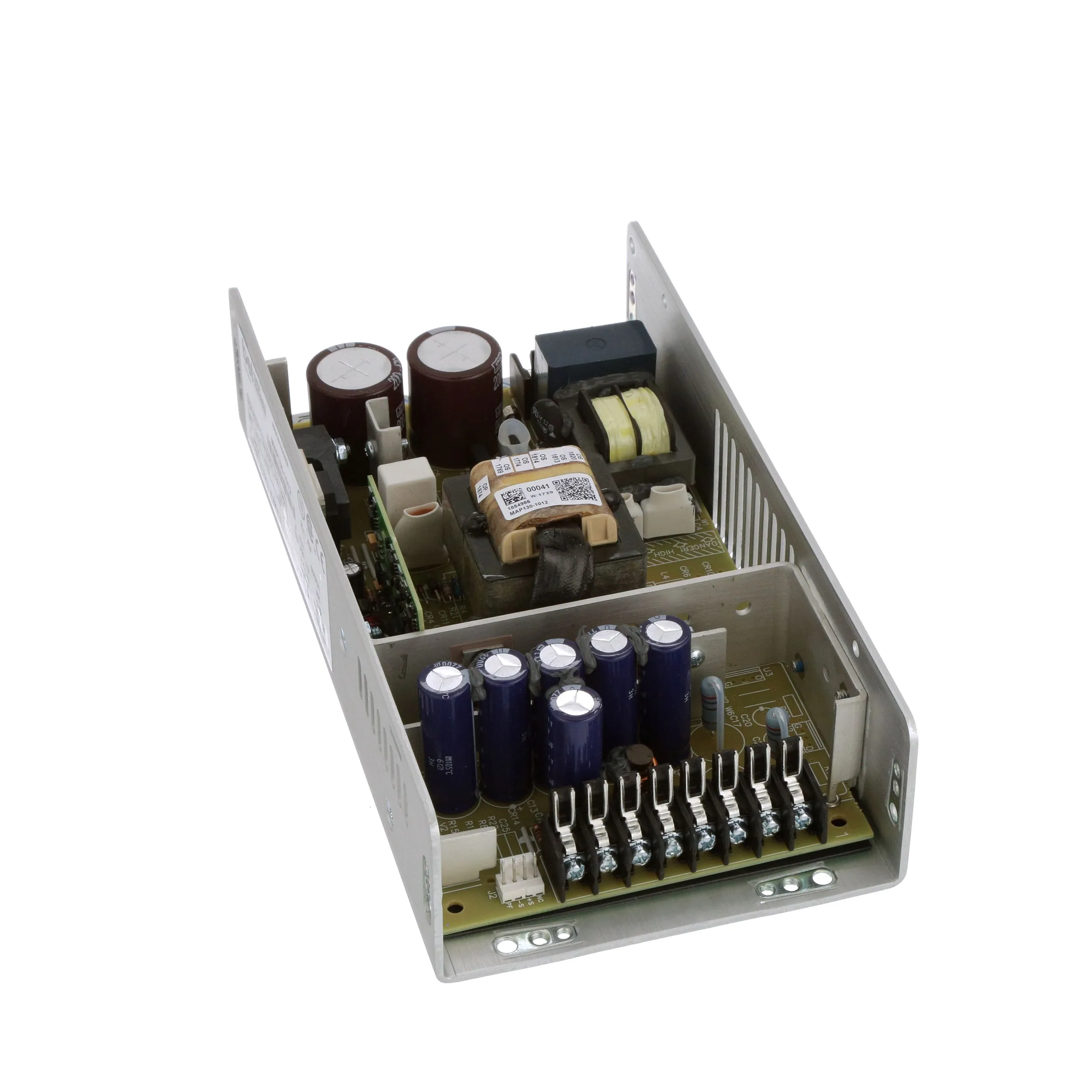

Bel Power Solutions MAP130 Series of single and multiple outputpower supplies provide fully-regulated outputs with high peak currentcapabilities in a compact 4.5 x 8.5 x 2.0 inch U-channel chassis. Otherstandard features include auto select AC input, EMI level B filtering,power fail, thermal shutdown (with warning), remote sense, and metricand SAE mounting inserts.This convection-cooled series is designed for use in commercial andindustrial environments in temperatures up to 50 deg C.All products are approved to the latest international regulatorystandards and display the CE Mark.
47 to 63 Hz Frequency, Power-One™ MAP130 Series Single Output Switching Power Supplies
CE Mark Compliances
