Product Details
＋

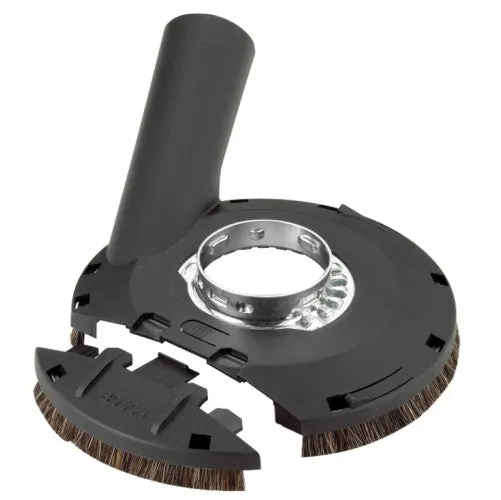

The Bosch 18SG-5E Surface Grinding Dust-Extraction Guard works with the Bosch 4-1/2 In. and 5 In. angle grinders. The guard and grinder can be part of the end-to-end Bosch PRO GUARD™ Protection System, along with attachments, dust extractor and respiration protection (to be used as a basic summary; always use products in accordance with the ownerʼs manual and OSHA Rule 1926.1153 Table 1). This attachment is tool free, with a removable nose piece and a replaceable brush ring for low cost maintenance.
Features & Benefits
- Flexible guard design – works with the Bosch 4-1/2 In. and 5 In. angle grinders to for dust collection
- Concrete surfacing – is part of the end-to-end Bosch PRO GUARD™ Protection System
- Dust collection - reduces cleanup time and provides cleaner air for user
- Removable nose piece – allows surface grinding right up to the wall
- Toolless attachment – connects to compatible Bosch grinders without using tools
- Replaceable brush ring – provides low cost maintenance
- Rugged construction – stands up to jobsite conditions
Technical Specifications
| Dust Collection | Yes |
| Material | Plastic Composite |
| Replaceable Brush Ring | Yes |
| Tool Free | Yes |
| Weight | 0.5lb |
| Wheel Diameter | 4", 4-1/2" & 5" |
| Works With | 1800 Series 4-1/2" & 5" Grinders 1800, 1801, 1803EVS, 1806E*, 1810PS, 1810PSD, 1811PS, 1811PSD, 1812PSD*, 1821, 1821D, 1824E, 1824ED (Must be used with diamond cup wheel with maximum 5" diameter.) AG-Series 4-1/2" & 5" Grinders AG40-85, AG40-85P, AG40-85PD, AG40-11P, AG40-11PD, AG50-10, AG50-11VS, AG50-11VSPD (Must be used with diamond cup wheel with maximum 5" diameter.) GWS10-Series 4-1/2" Grinders GWS10-45, GWS10-45P, GWS10-45PD (Must be used with Type 1 / 1A cutting wheel with maximum 5" diameter) --- NOT COMPATIBLE with GWS10-45E, GWS10-45DE, GWS10-45PE models GWS13-Series 5" Grinders GWS13-50, GWS13-50P, GWS13-50PD, GWS13-50VS, GWS13-50VSP, GWS13-50VSP-DG (Must be used with diamond cup wheel with maximum 5" diameter.) GWS18V-Series 4-1/2" Grinders GWS18V-45C, GWS18V-45PC, GWS18V-45PSC. GWS18V-8 (Must be used with diamond cup wheel with maximum 5" diameter.) ---NOT compatible with GWS18V-45 and GWS18V-50 models. GWS18V-Series 5"-6" Grinders GWS18V-13C GWX18V-Series 5"-6" Grinders GWX18V-13C Other 4-1/2" & 5" Grinders NOT COMPATIBLE with 1375A, 1380Slim, GWS8-45 and GWS9-45 Anti-Static Vacuum Hoses VH1635A (by means of anti-static adapter included with that hose), VAC008, and most other 35 mm anti-static hoses Other Vacuum Hoses VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 35 mm hoses Adapter for 1-1/4" & 1-1/2" Hoses VAC002 or VAC024 Adapter for 2-1/2" Hoses VAC020 |
| Includes | (1) Surface Grinding Dust-Extraction Attachment for Bosch 4-1/2 In. and 5 In. Angle Grinders |
