DESCRIPTION:

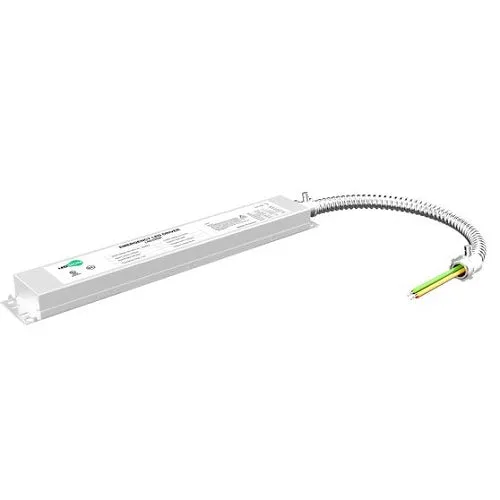

When AC supply power is lost in a power outage, the emergency driver switches on automatically to provide backup battery power directly to LED arrays at a rated output voltage of 170 VDC. The constant wattage power design maintains the output wattage even as the system voltage diminishes. The battery backup has a wide input voltage of 100-347 VAC.  The internal lithium-ion battery provides backup light for a minimum of 90 minutes and has a 24-hour recharge time. The UL 924 listed certification and CEC Tile 20meets or exceeds specific safety and fire hazard codes required for commercial properties in the United States.

*** Compatible with Eco LED Mart's LED Flat Panel, LED Troffer, LED Linear High Bay***

INSTALLATION GUIDE:

Click Here:

PRODUCT SPECIFICATIONS:

• Backup Time: 90 Minutes
• Input Voltage Range: 100-347 VDC
• Output: 170 VDC
• Surge Protection: 3kV
• Compatible With: 1-10V Dimmable
• IP Rating: IP65
• Warranty: 5 Years
• SKU: QB:01032754052124
