Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Configuration | Enclosed |
| Input Voltage | 100 VAC ; 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC |
| Mounting Type | DIN Rail Mount |
| Number of Outputs | 1 Output |
| Operation | Switching |
| Output Current | 2.5 A |
| Output Power | 60 W |
| Output Voltage | 24 VDC |
| Primary Type | AC-DC |
| Series | |
| Type | Industrial |
| Voltage, Input Range | 85-264 VAC |
Overview

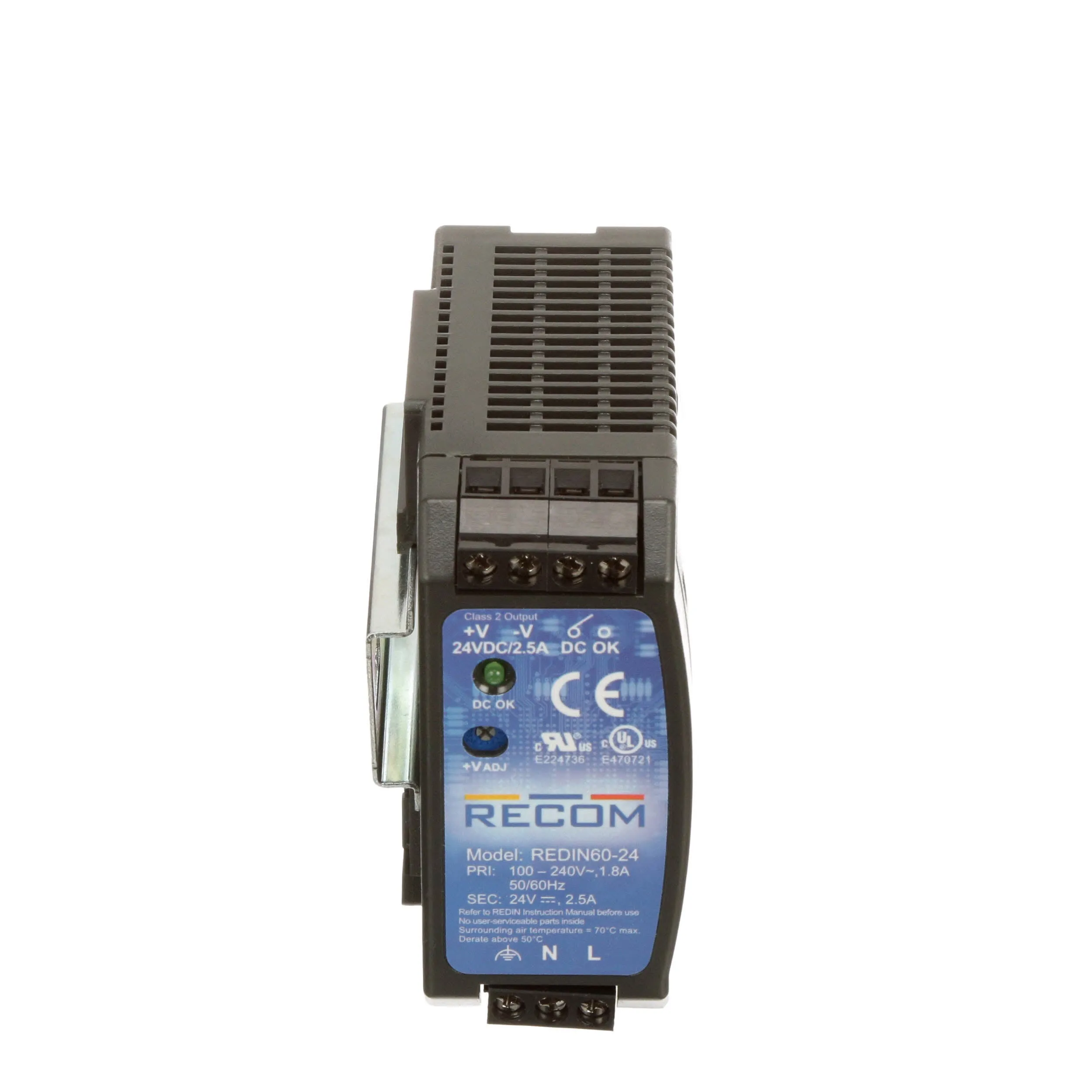

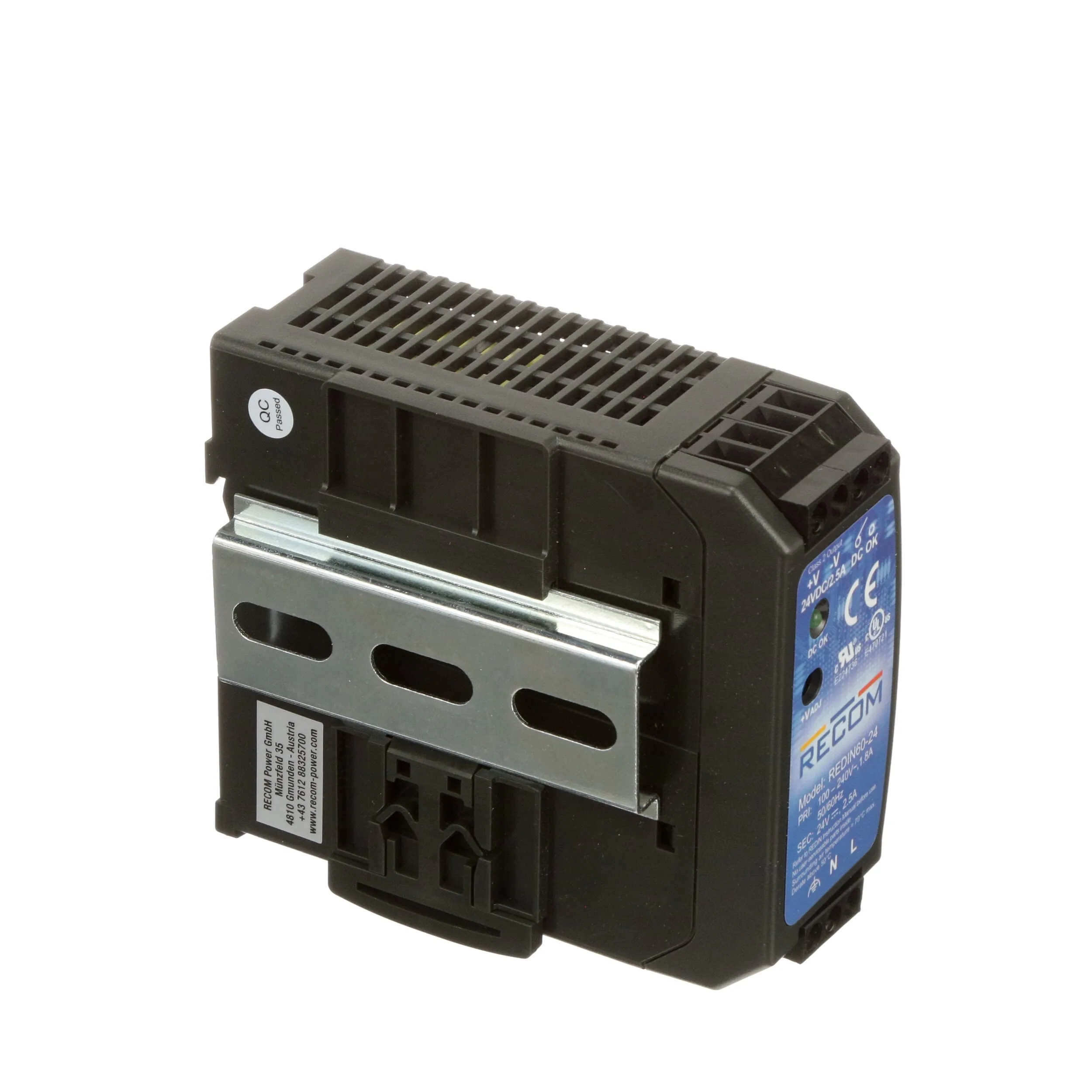

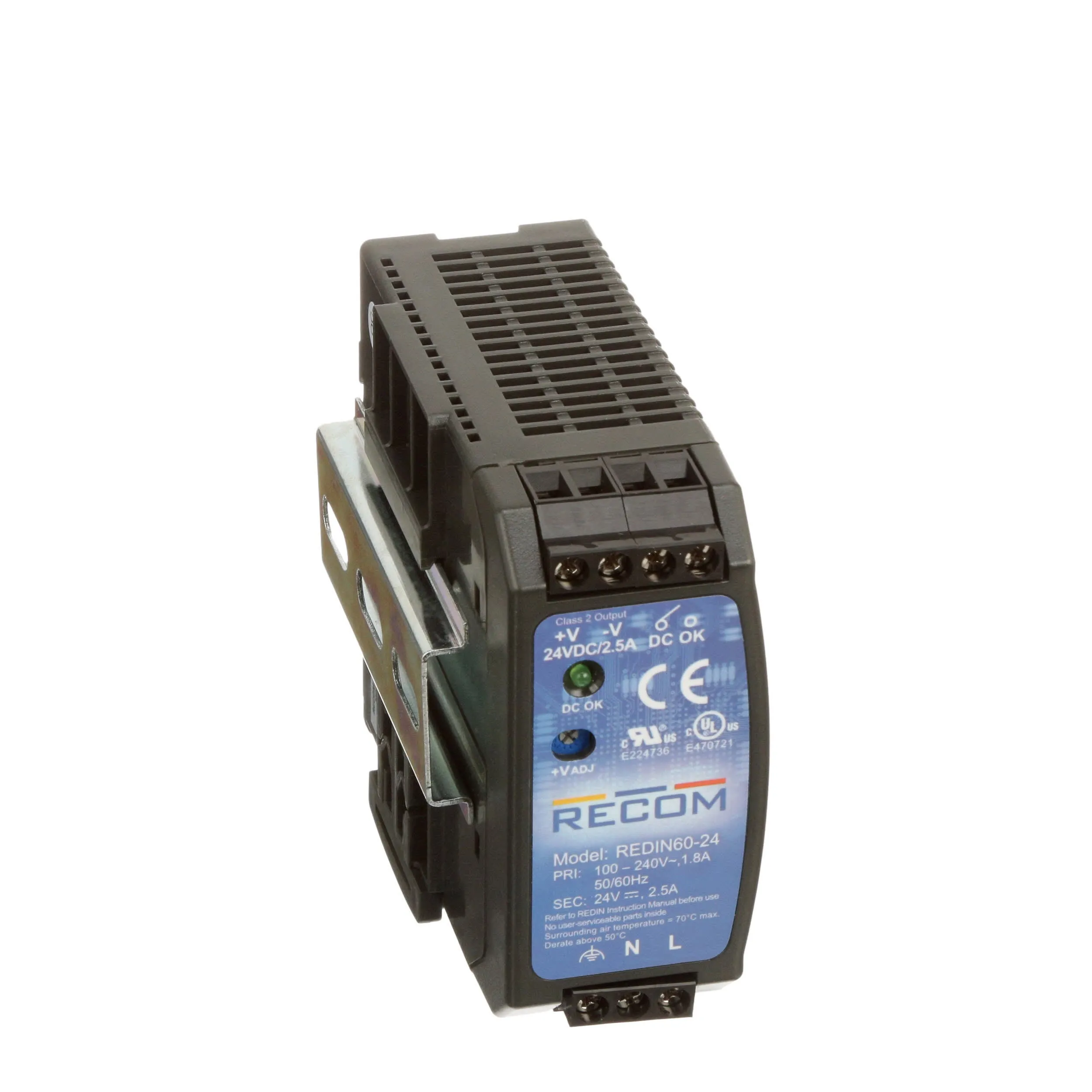

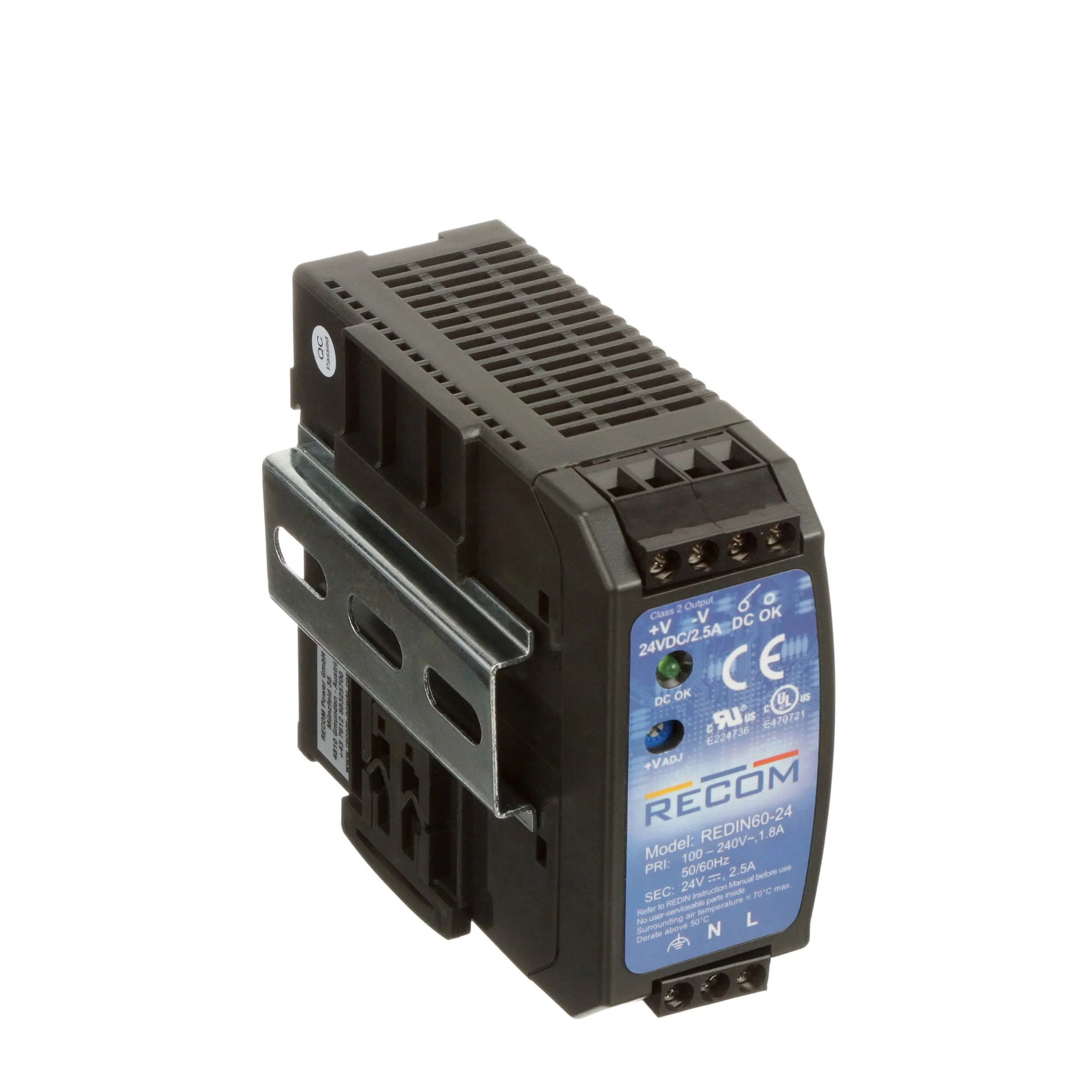

This DIN-rail mounted power supply uses high reliability components to give a long, trouble-free life. The power supply can be end mounted to save space or side mounted for use in low-profile cabinets. Relay contacts simplify DC OK monitoring and the units can be deliver 80W start-up power. The REDIN series is fully certified for industrial use and carries a 7-year warranty.
