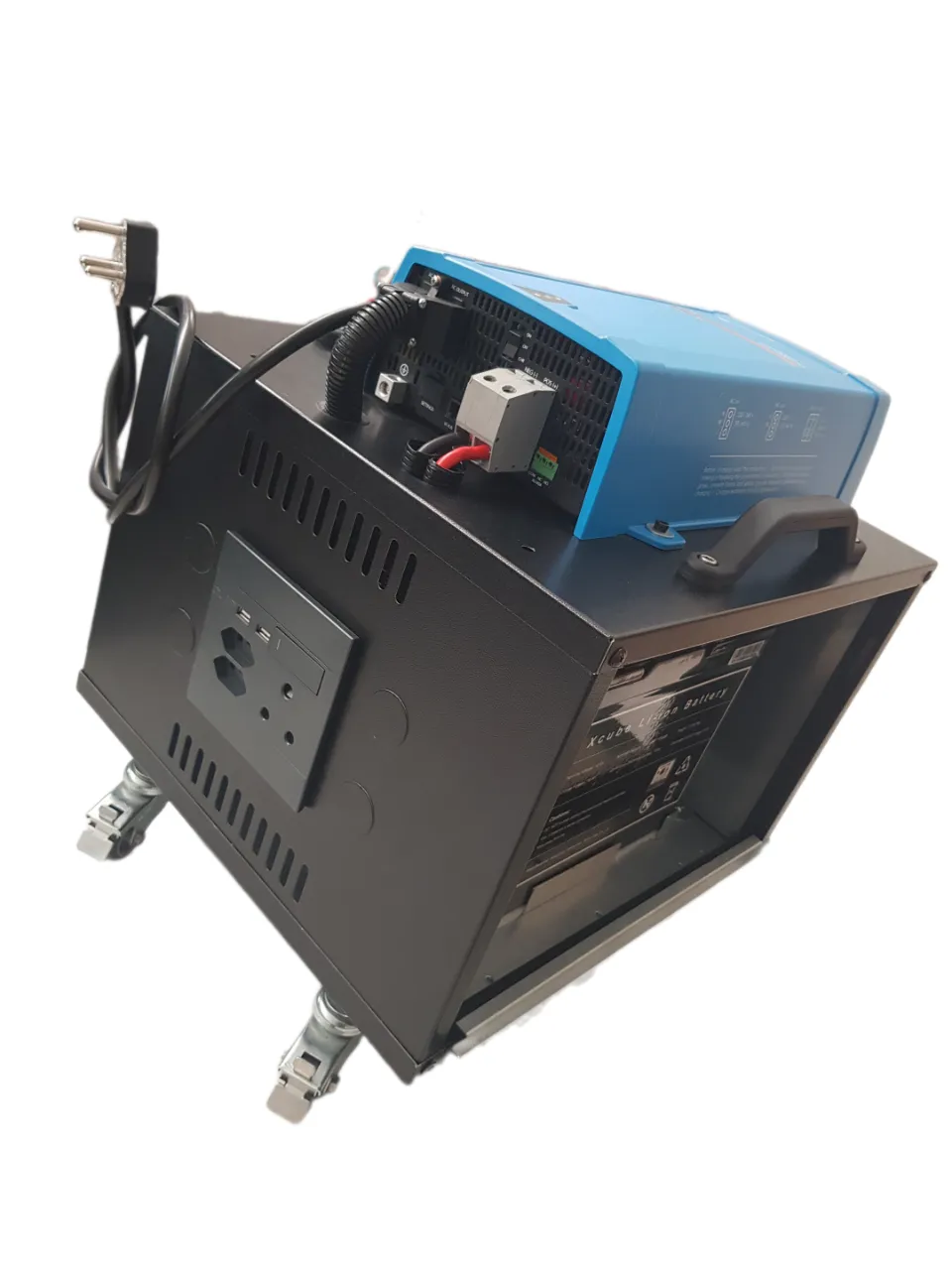

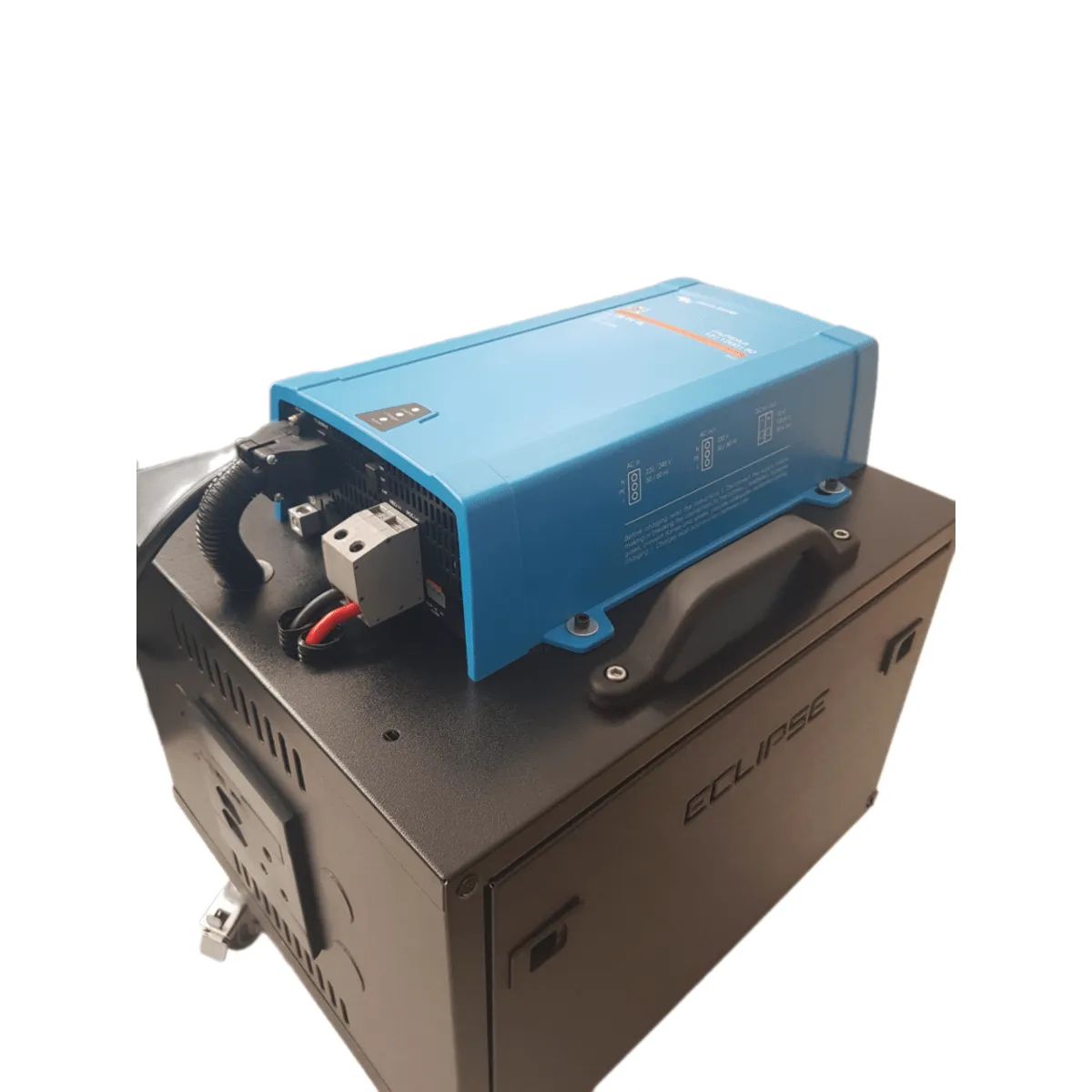

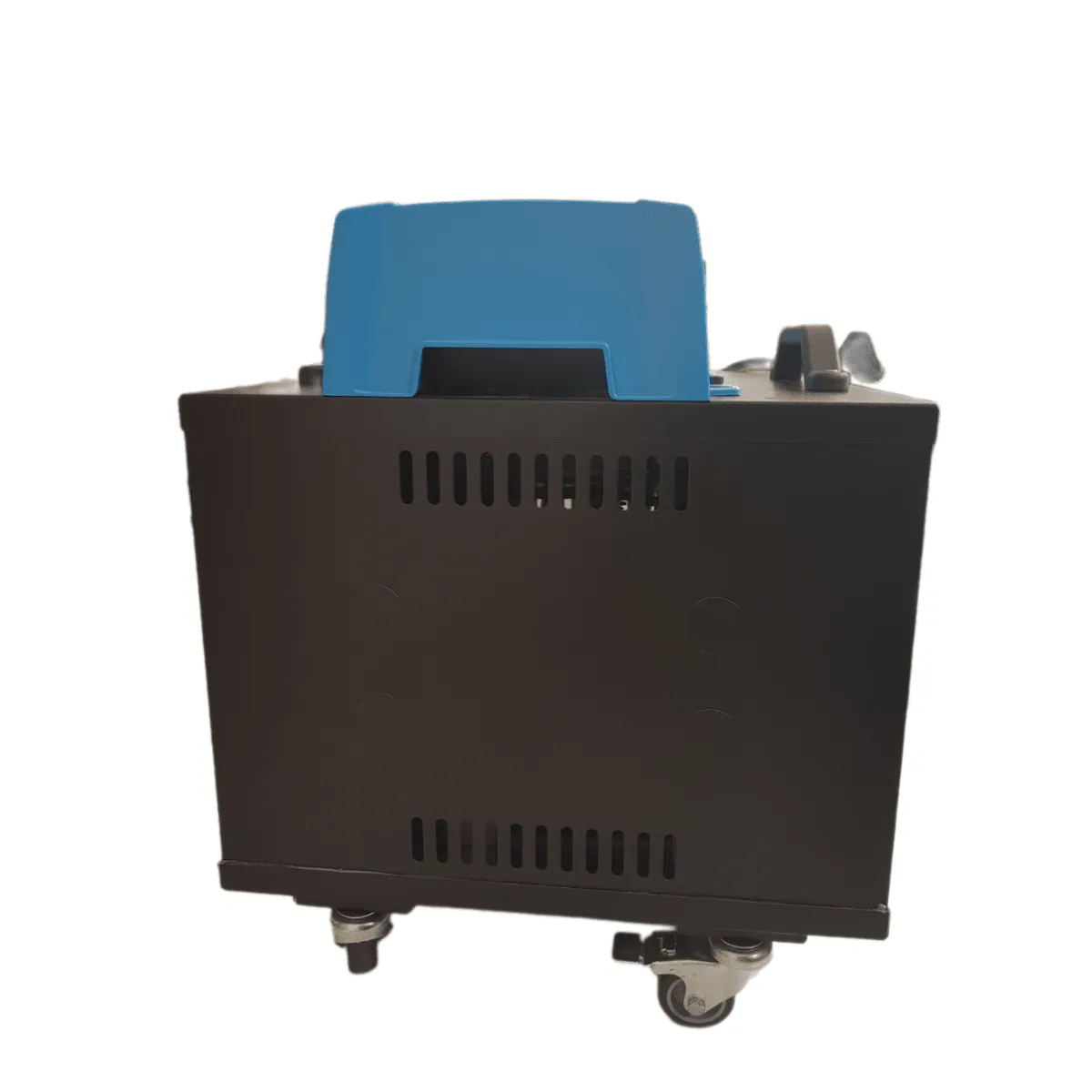

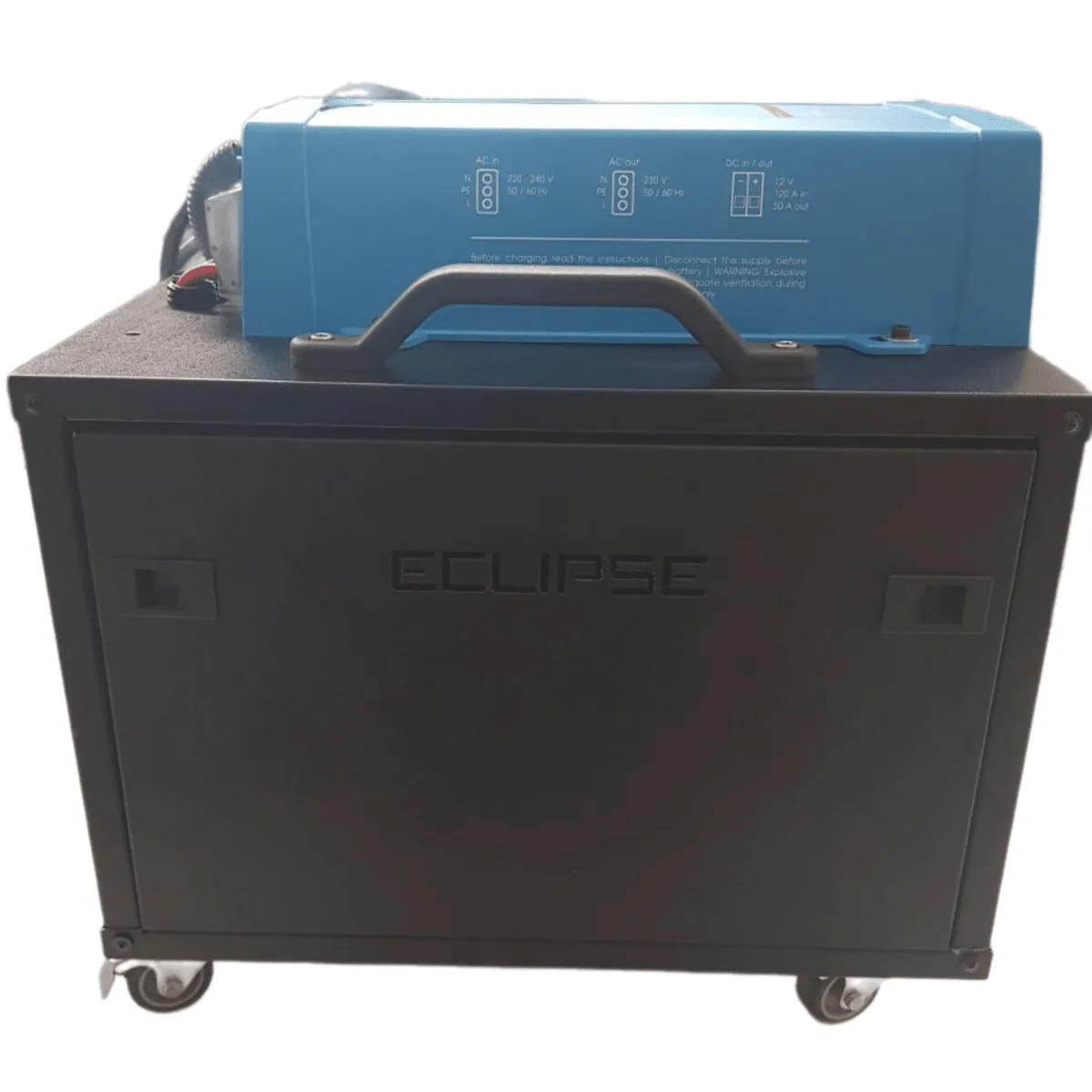

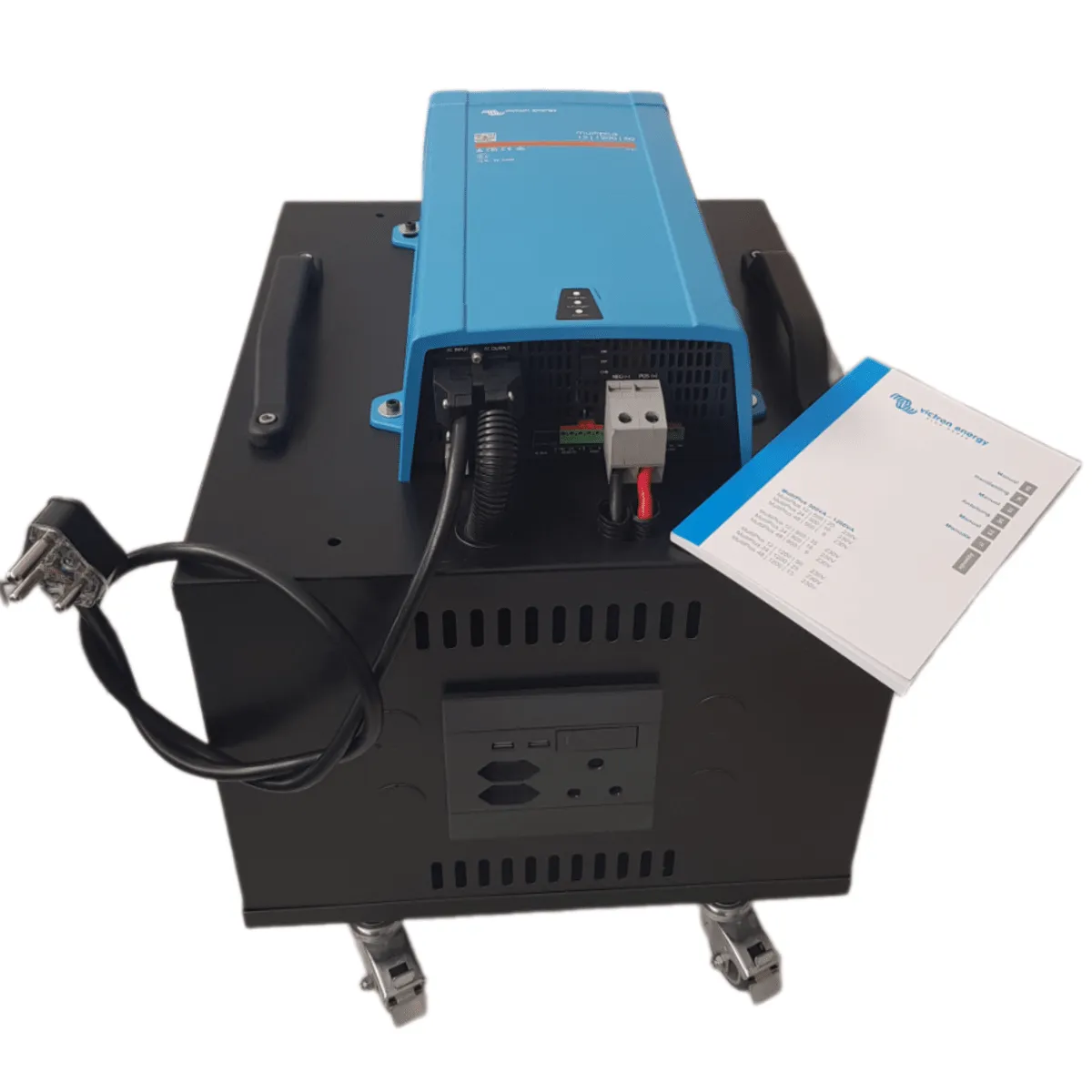

Lithium Power Trolley consists of the following main components:

• 1 x Victron Multiplus 1.2kVA 1kW 12V Inverter-Charger
• 2 x Vestwoods 12V 100Ah 1.2kWh LiFePO4 Battery
• 1 x RCT Battery Box for 2 x100Ah Deep Cycle Batteries
• Panel Flex Cabling

Specifications:

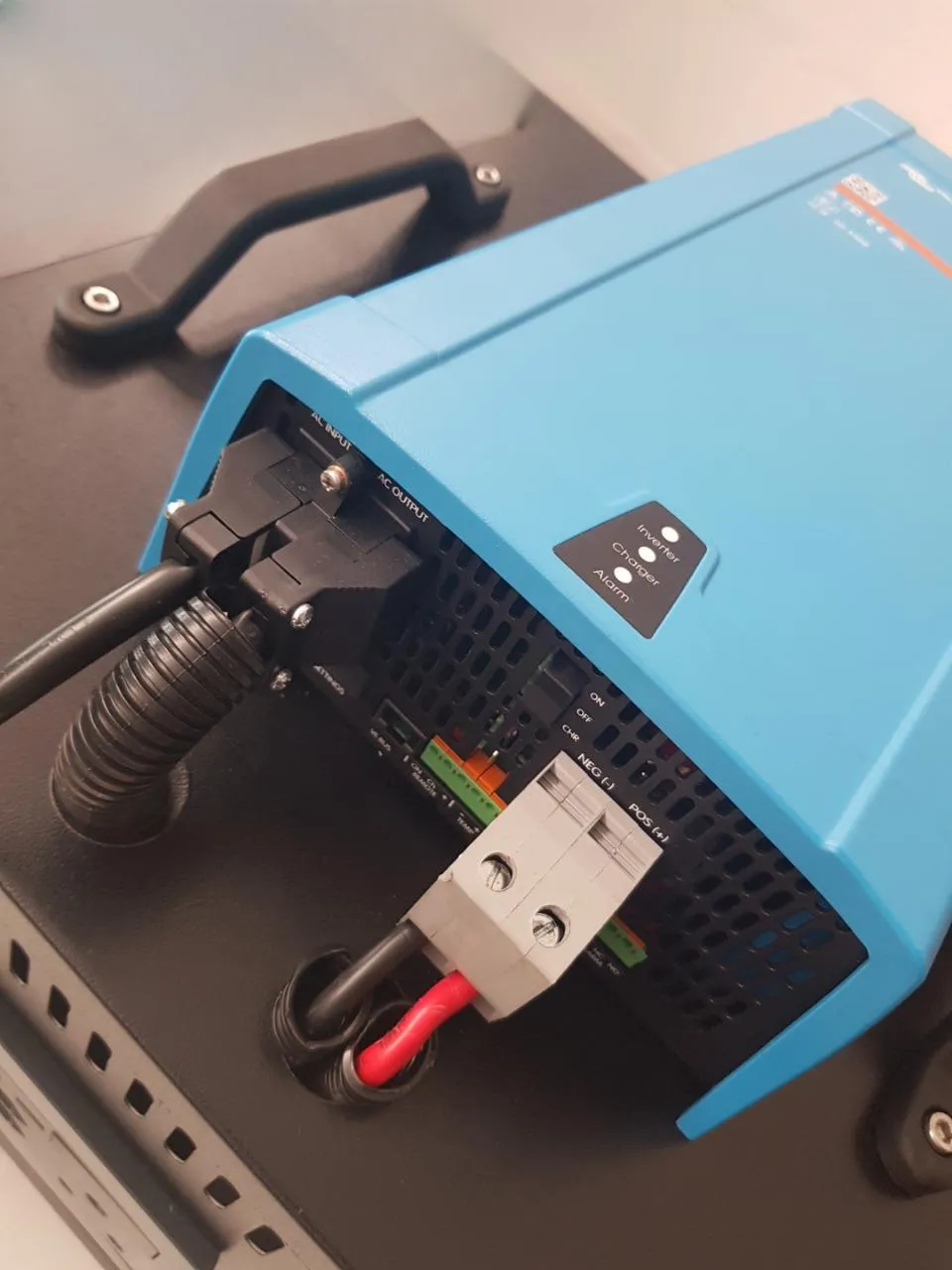

Victron Multiplus 1.2kVA 1kW 12V Inverter-Charger

• Proven reliability.
• PowerControl – Dealing with limited generator, shore side or grid power (800VA /1200VA).
• PowerAssist – Boosting the capacity of shore or generator power (800VA / 1200VA). High start-up power.
• Search Mode. Programmable relay.
• Remote on/off/charger on.

Technical Specifications

• PowerControl/PowerAssist: Yes.
• Three Phase and parallel operation: Yes.
• Transfer switch: 16A.
• Inverter
• Input voltage range: 9,5V-17V / 19V-33V / 33V-66V.
• Output voltage: 230VAC ± 2%.
• Frequency: 50Hz ± 0,1%.
• Cont. output power at 25°C (3): 1200VA.
• Cont. output power at 25°C: 1000W.
• Cont. output power at 40°C: 900W.
• Cont. output power at 65°C: 600W.
• Peak power: 2400W.
• Maximum efficiency: 93% / 94% / 95%.
• Zero-load power: 10W / 9W / 10W.
• Zero-load power in search mode: 3W.

Charger

• AC Input voltage range: 187VAC – 265VAC.
• Input frequency: 45 Hz – 65 Hz.
• Charge voltage ‘absorption’: 14,4V / 28,8V / 57.6V.
• Charge voltage ‘float’: 13,8V / 27,6V / 52.8V.
• Storage mode: 13,2V / 26,4V / 13A.
• Charge current house battery: 50A / 25A / 13A.
• Charge current starter battery: 1A (12V and 24V models only)
• Battery temperature sensor: Yes.

General

• Programmable relay: Yes.
• Protection: (2) a ; g (Please see specifications sheet).
• Operating temp. range: -40 to 65°C (fan assisted cooling).
• Humidity (non-condensing): max 95%.
• 5 year warranty.

Enclosure

• Material & Colour: Steel/ABS (blue RAL 5012).
• Protection category: IP 21.
• Battery-connection: 35 mm² / 25 mm² / 10 mm².
• 230V AC-connection: G-ST18i connector.
• Weight: 8,2 kg.
• Dimensions (h x w x d): 406 mm x 250 mm x 100 mm.

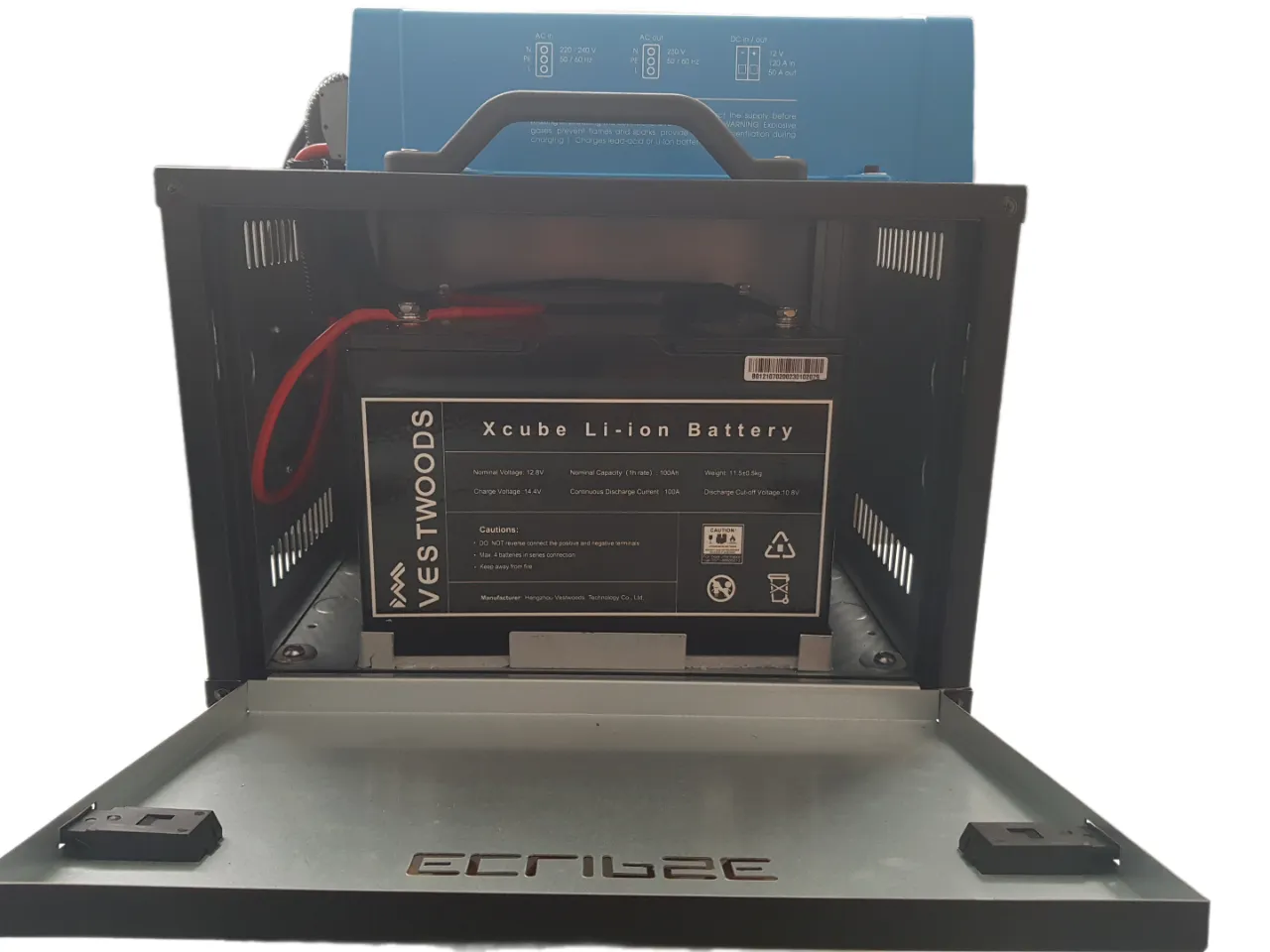

Vestwoods 12V 100Ah 1.2kWh LiFePO4 Battery

 Features:

• Cell Balancing
• Extend lifetime of battery
• Current >300mA
• Safe and Reliable - The safest LFP battery cell
• Bluetooth built-in - Easy to access battery status
• Battery management system with chip
• Supports series and parallel use
• High compatibility - Support to connect with lead-acid battery

Electrical:

• Nominal Voltage/V: 12.8
• Nominal Capacity/Ah: 100
• Rated Energy/Wh: 1280
• BMS Function: Overcharge, over-discharge, overcurrent and temperature protection
• Recommended Charge Voltage/V: 14.4 - 14.6
• Discharge Cut-off Voltage/V: 10.8
• Standard Charge Current/A: 50
• Max. Charge Current/A: 100
• Continuous Discharge Current/A: 100
• Peak Discharge Current/A@5S: 300
• Voltage Configurations: 12, 24, 36 or 48V
• Increase capacity in series or increasing voltage parallel
• Maximum time between changes: 3 months
• Monitoring: Bluetooth
• Warranty: 3 years

Mechanical:

• Dimensions: 307*169*213
• Weight: Approx. 11.5
• Terminal: M8
• Casing material: ABS

Environment:

• Working Temperature Range/°C: Charge: 0~55 Discharge: -20~60
• Humidity Range/RH: <95%
• Storage temperature/°C: 15~35
• IP protection level: IP65

RCT Battery Box for 2 x100Ah Deep Cycle Batteries

• RCT Battery Box used for 2 x 100Ah Deep Cycle Batteries
• Dimensions: 45.5cm x 31cm x 42.4cm
• Weight: 15kgs

Panel Flex Cabling

• Voltage Rating: PF type 300 V / 500 V; SF type: 600 V / 1000 V.
• Test Voltage: 5000/6000 Volts.
• Current Capacity (AC): 76 Amps.
• Temperature Range: -10° to 80°C.
• Flexibility Class: 4 & 5.
• Conductor Type: High conductivity annealed copper.
• Insulation Material: Flexible grade PVC.
• Colour Options: Black and Red.
• Size mm²: 16.0.
• Stranding No x Diameter: 200 x 0.31 mm/Ø.
• Nominal Diameter: 7.3 mm/Ø.
• Length" 1 Metre
• Mass kg/100m: 17.53Kg.
